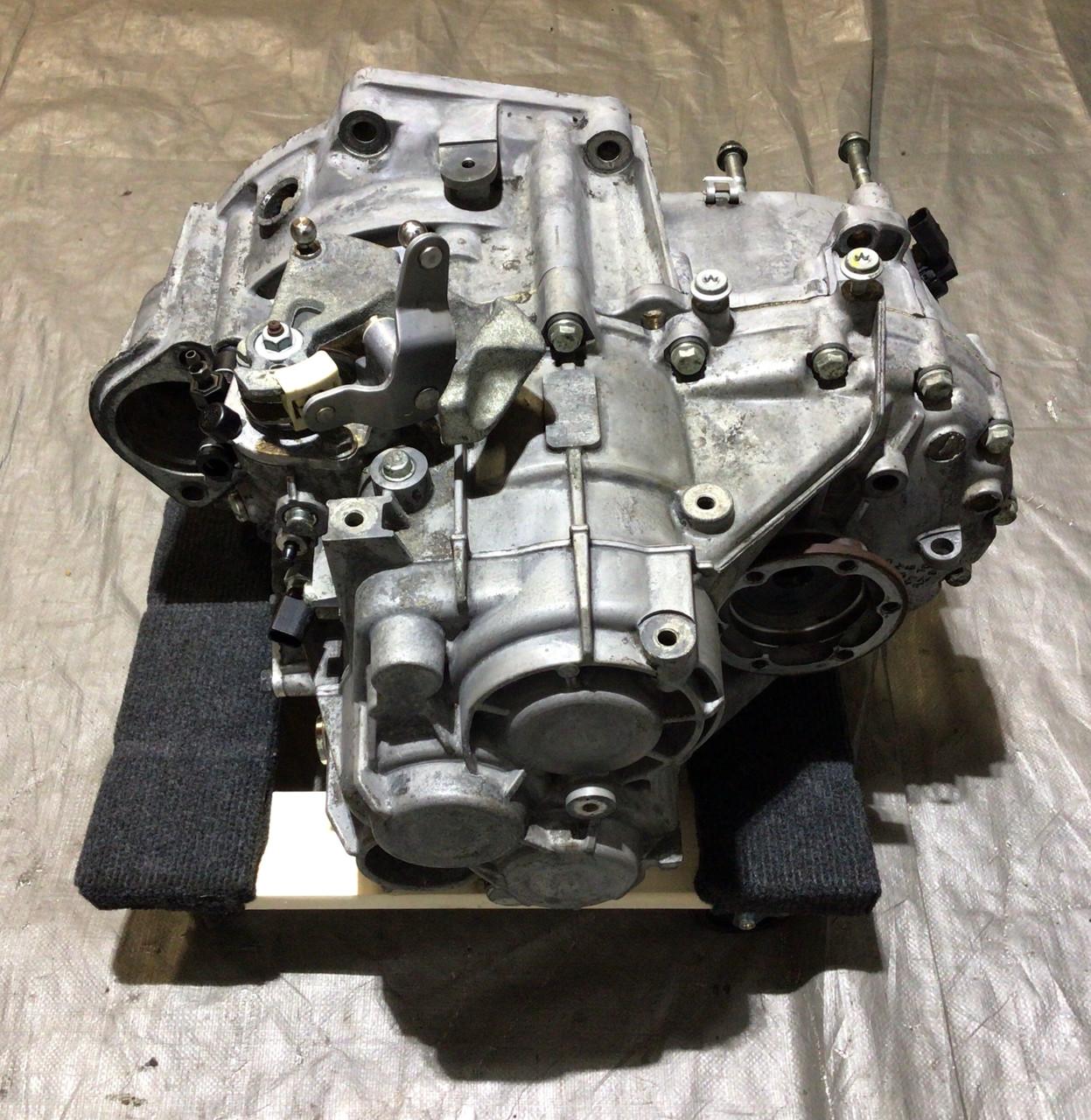

Audi 1.8T AWD BAM Gearbox

Audi 1.8T BAM 225 hp quattro/AWD, the gearbox is a 6-speed manual AWD transmission from the 02M/02Y family. The exact gearbox code depends on the model/year. Audi documentation confirms the 02M AWD was used with the 1.8T, and later cars also used the 02Y version.

https://images.openai.com/static-rsc-4/LsKEkUn3yNnjL1-wFAN1agodDV2DE1psCVCfhibqJPDsAW_2_f2r7g2JWsNYCjQqWxjpy_SoaBt1zYMNUt8aJn0A17hTWYmNAwgd8NRUUudEmbvljgXY0K3rLlnAN_WEXQ5lRYbzXZvaQax7DJpXhGprtYrZGH4F4PENmalXYPst6OmH19UZapLCJO_OGKd5?purpose=fullsize

Common BAM AWD gearbox codes

Gearbox	Application	Notes
DQB	Audi TT 225 1.8T quattro	6-speed 02M
FMN	Audi S3 8L / TT 225	6-speed AWD
FZQ	S3 8L / some BAM applications	6-speed AWD, different ratios
FZL/FZP	Later TT 1.8T	02Y AWD variants

For example, Audi’s transmission data lists DQB for the 165 kW (225 PS) TT 1.8T and gives a 240 mm clutch and 108 mm drive-shaft flanges. Audi 1.8T AWD BAM Gearbox
