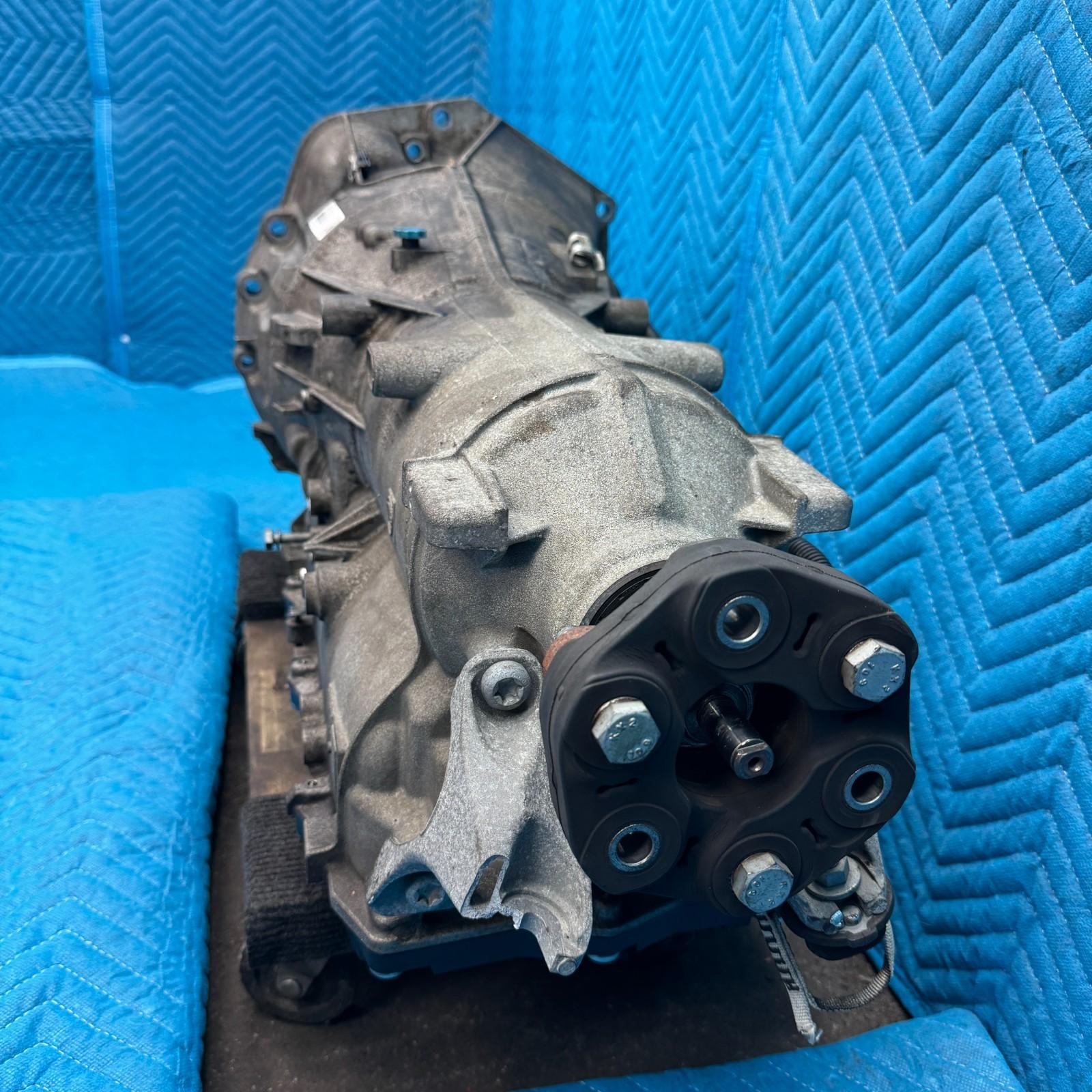

BMW F30 2.0 GA8HP45Z 8-Speed Automatic Gearbox

Category: Bmw Gearboxes

GA8HP45Z alone isn’t enough to guarantee compatibility. There are multiple BMW versions/suffixes and different production dates. For example, BMW’s catalog shows different GA8HP45Z versions for the F30 320i, including XMQ, XDY and later variants.

Description
Reviews (0)

Description

The GA8HP45Z is BMW’s designation for a ZF 8HP45-family 8-speed automatic transmission used in various F-series BMWs, including the F30 320i/328i 2.0 petrol. BMW parts catalogs specifically list GA8HP45Z for the F30 320i with the N20 engine.

Key specifications

Item	GA8HP45Z
Manufacturer	ZF
Type	8-speed automatic
BMW designation	GA8HP45Z
ZF family	8HP45
Typical F30 2.0 application	320i / 328i N20, depending on market/year
Drive	Rear-wheel drive version; xDrive uses a different 8HP45X variant
Rated torque class	~450 Nm
Dry weight	~79–81 kg
Gear ratios	1st 4.714 → 8th 0.667
Reverse	3.317
Gear spread	7.07:1

The 8HP45 is rated in the 450 Nm class, although the exact BMW transmission calibration and hardware specification depend on the particular application. BMW F30 2.0 GA8HP45Z 8-Speed Automatic Gearbox
