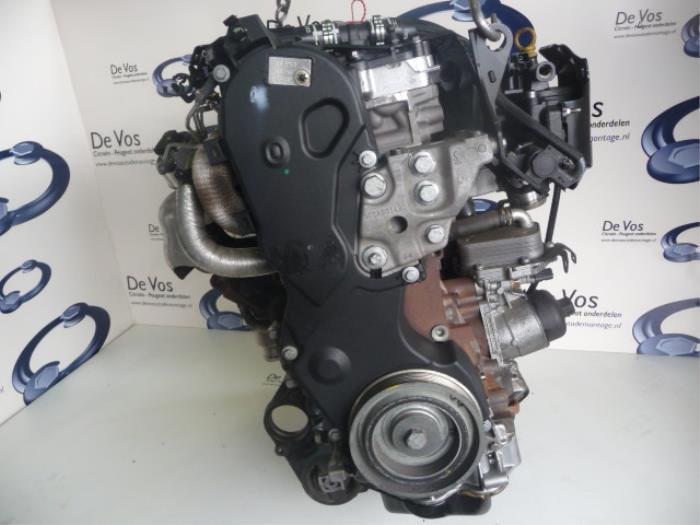

Peugeot 2.2L 4HX Engine For Sale

The Peugeot 2.2L 4HX engine is a 2.2 HDi turbo-diesel engine from the DW12 family. The 4HX (DW12TED4) is a 2,179 cc, 4-cylinder, 16-valve common-rail diesel producing approximately 98 kW (133 hp) and 314 Nm of torque.

This engine was fitted to various Peugeot applications, including the Peugeot 406 and Peugeot 607, primarily during the early 2000s.

Specifications

• Make: Peugeot
• Engine Code: 4HX
• Engine Family: DW12TED4
• Displacement: 2.2L / 2,179 cc
• Fuel Type: Diesel
• Cylinders: 4-cylinder inline
• Valves: 16-valve DOHC
• Injection: HDi Common Rail
• Aspiration: Turbocharged
• Maximum Power: 98 kW / 133 hp @ 4,000 rpm
• Maximum Torque: 314 Nm @ 2,000 rpm
• Bore × Stroke: 85 × 96 mm
• Compression Ratio: 18:1

Suitable Applications

• Peugeot 406 2.2 HDi
• Peugeot 406 Coupé 2.2 HDi
• Peugeot 607 2.2 HDi
• Other compatible Peugeot/Citroën applications using the 4HX/DW12TED4 engine code

Please confirm the engine code, vehicle model/year and ancillary components before ordering to ensure compatibility. Peugeot 2.2L 4HX Engine For Sale
